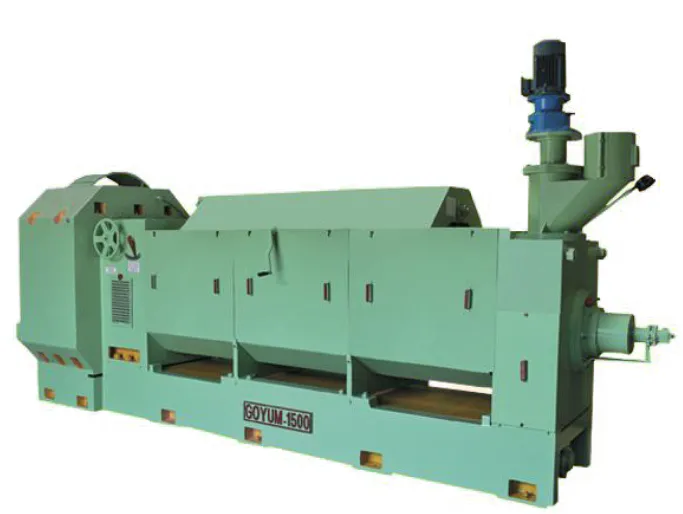

Goyum 1500 Large Capacity Expeller

Goyum 1500 Features:

We are very proud of our large-capacity expellers to serve the high-capacity requirements of our clients. Made of high-quality material, these are available in different grades and specifications and are suitable for heavy-duty applications. We are capable of manufacturing large-capacity expellers to specifications as required by our clients. The Goyum 1500 can process 50 tons per day for single/final crushing or 150 tons per day as a pre-press for oilseeds containing 30 percent or more oil.

This model has been designed with a simple and symmetrical shape. It has a triple reduction gearbox with helical gears of cast steel and pinion shafts of special steel. The gearbox is aligned with all the bodies on a single fabricated base. There are three chambers of cast steel, vertically hinged, each 36 inches long. Cake thickness can be adjusted on a running machine. The worm assembly, discharge ring, and compression ring are all hard-face welded. The main worm shaft can be withdrawn without disturbing the gearbox. The shaft is water-cooled. The crammer shaft for extra cramming of the seed or cake in the feed body is completely supported on bearings.

For more information, download the following:

Goyum 1500 features (PDF)
Goyum 1500 details (PDF)
New Goyum 1500 (PDF)
