Filtration
|

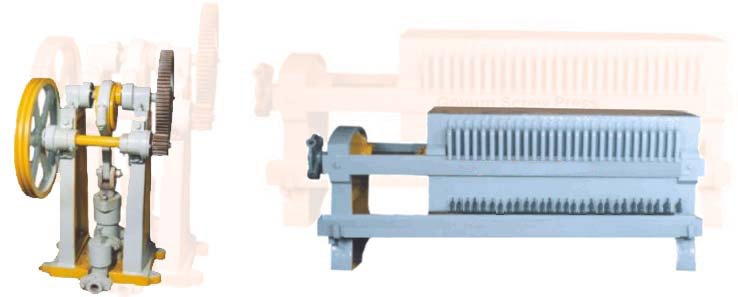

Efficient filtering of fines from your crude vegetable oil (foots) is critical to efficient oil production. Our range of filtration equipment includes filter presses that have been designed in compliance with market standards and industry specifications. Made of high grade materials, these filtration systems are based on the time proven technology and deliver superior filtration results. Price includes plates, frame, pump and all valves needed. Additional cloth sets and sizes are available upon request.
|
|
|
 Send Inquiry
|
Size
|
Weight [kgs]
|
Area [sq. meters]
|
Capacity
[liters per day]
|
Hp
|
Rpm of pump
|
Size of plunger pump
|
|
36"x36"x36" Plates x 35" Frames
|
10,000
|
55
|
50,000
|
10
|
2900
|
Centrifugal
|
|
30"x30"x30" Plates x 29" Frames
|
5,500
|
35
|
30,000
|
5
|
55-65
|
80 mm
|
|
30"x30"x30" Plates
|
4,800
|
35
|
25,000
|
3
|
55-60
|
80 mm
|
|
24"x24"x30" Plates x 23" Frames
|
3,000
|
16
|
12,500
|
3
|
50-55
|
60 mm
|
|
24"x24"x30" Plates
|
2,700
|
20
|
12,500
|
3
|
50-55
|
60 mm
|
|
24"x24"x24" Plates
|
2,300
|
16
|
10,000
|
3
|
50-55
|
60 mm
|
|
18"x18"x18" Plates
|
1,000
|
7
|
5,000
|
1
|
40-45
|
50 mm
|
|
14"x14"x14" Plates
|
500
|
3
|
2,500
|
1
|
40-45
|
50 mm
|
|
12"x12"x12" Plates
|
380
|
2
|
1,500
|
1
|
40-45
|
40 mm
|
|
|
|
|
 |
|
