Oil Extraction Machinery
Nebraska Screw Press has a variety of oil extraction machinery available for various oil extraction requirements. Made of high-grade material, these machines deliver excellent performance and are easy to use, durable and require negligible maintenance. Available at competitive prices, our machines are available in a wide variety of capacities and specifications. Our Goyum presses weigh 3-4 times the comparable Chinese equipment per rated ton (though that is also overated) and are much more heavy duty compared to these units. Be warned about inferior quality equipment, no matter where it comes from!

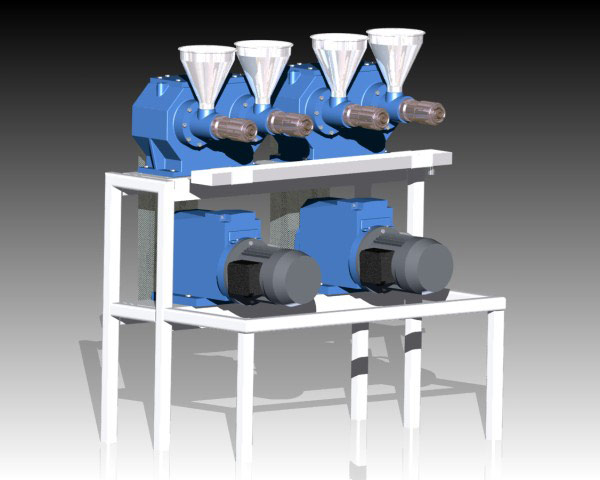

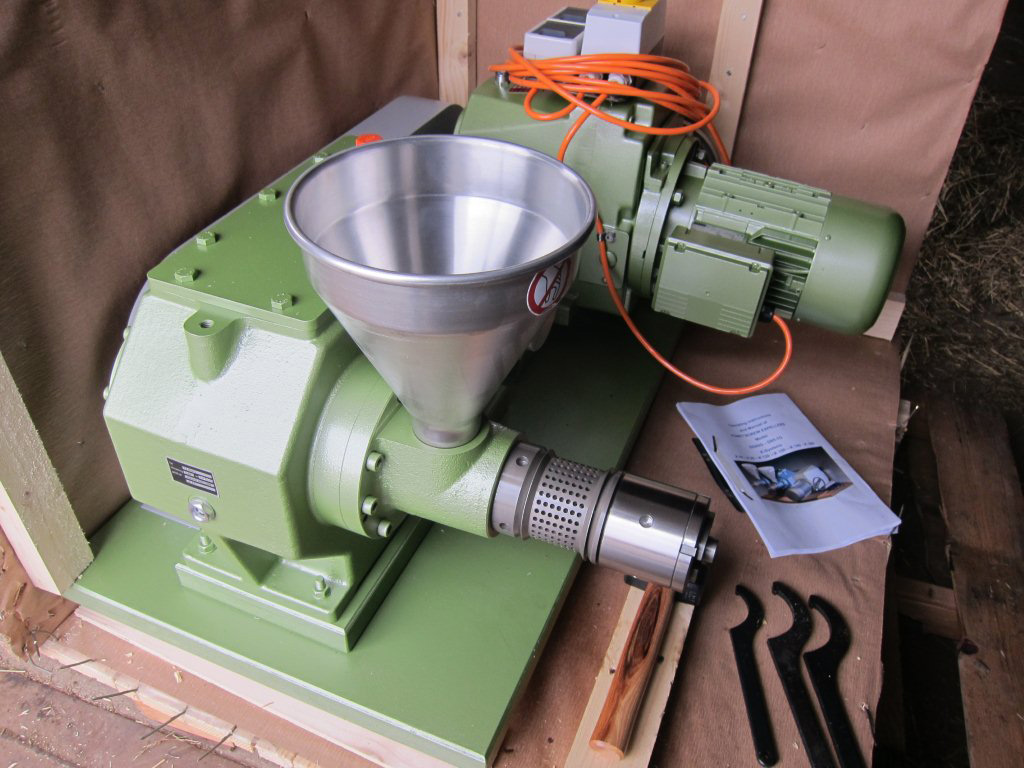

Komet
Goyum 10
Goyum 20
Goyum 30
Goyum 30 MK-I
Goyum 60
Goyum MK-III
Goyum MK-III C
Goyum 100
Goyum MK-IV

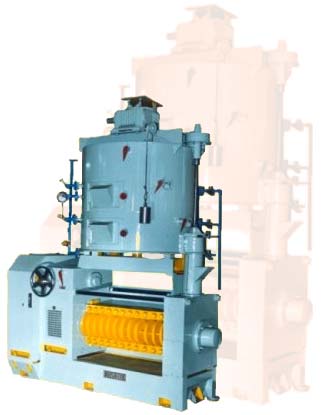

Goyum 150
Goyum 600
Tokul - 1 Head
Tokul - 3 Head
Tokul - 5 Head
Tokul - 20 Head
Farmet 10
Farmet 20
DUO Cold Press
UNO Cold Press

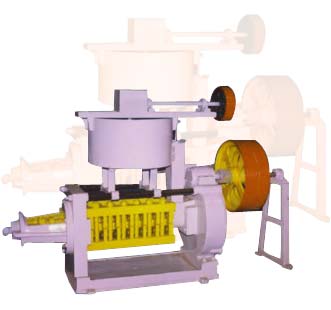

Goyum 10
Capacity: 1 ton per day
With a capacity of 1 ton per day, the Goyum 10 is a cost-effective solution for small and pilot applications. These expellers require minimum maintenance and are easy to operate. The Goyum 10 is a time proven design that uses the same components as larger commercial machines, providing scalable results for pilot applications, unlike other small oil presses. The press can be run by wide or V belts driven by PTO, electric or diesel motors.
The main body and base are made out of high grade quality cast iron. It has a single reduction gear box with spur gears and a fabricated chamber with three sections. The sizes of the chamber are as follows: 3.5 inches diameter x 20 inches long. The worm assembly is case hardened to ensure it withstands heavy loading, which results in a superior quality of oil and cake. This machine is easy to operate and requires low maintenance, which makes it ideal for both personal and small business use.
|
|
|
 Send Inquiry
|
|
Power Consumption:
|
3-Phase 5hp Motor - 1440 rpm
|
|
Integrated Cooker:
|
Single stage with or without heating arrangement (as required)
|
|
High Capacity:
|
1 ton per day (capacity differs with material density and quantity of oil in the seed.)
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
1300mm
|
475mm
|
1075mm
|
|

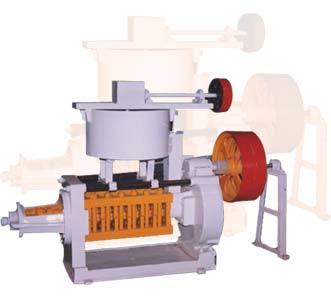

Goyum 20
Capacity: 2-3 tons per day
The Goyum 20 utilized the same time proven design of our smaller Goyum 10 units. This machine comes complete with a seed cooking and cooling unit that can utilize steam, hot or chilled water or electricity.
The main body and base of the Goyum 20 are made out of high grade quality cast iron. It has a single reduction gear box with spur gears and a fabricated chamber with three sections. The size of the chamber is as follows: 4 inches diameter x 24 inches long. The worm assembly is case hardened to ensure it withstands heavy loading, which results in a superior quality of oil and cake. The cake thickness can not be adjusted while the machine is running. This machine is easy to operate and requires very little maintenance.
|
|
|
| Send Inquiry
|
|
Power Consumption:
|
3-Phase 7.5hp Motor - 1440 rpm
|
|
Integrated Cooker:
|
Single stage with or without steam heating arrangement (as required)
|
|
High Capacity:
|
2 tons per day (capacity differs with material density and quantity of oil in the seed.)
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
2185mm (86")
|
685mm (27")
|
1422mm (56")
|
|

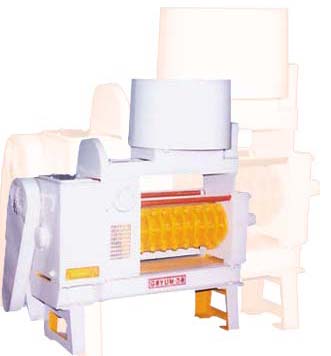

Goyum 30
Capacity: 3 to 4 tons per day
The main body and base of the Goyum 30 are made out of high grade, quality steel. It has a triple reduction gear box with helical gears and a cast steel chamber of four sections. The sizes of the chamber are as follows: 4 inches diameter x 26 inches long. The worm assembly is case hardened to ensure it withstands heavy loading, which results in a superior quality of oil and cake. The thickness of the cake can be adjusted while running. This machine takes less installation space than normal machines, is easy to use and requires very little maintenance.
The seed cooker and conditioner is included and integrated into the machine design. This is an excellent machine for pilot testing that will provide scalable results to standard commercial scale machines. The Goyum 30 design is identical to the Goyum 100 and 150 machines, with the exception of feed cramming. Cage bars are hinged for easy maintenance.
|
|
|
| Send Inquiry
|
|
Power Consumption:
|
3-Phase 7.5hp Motor - 1440 rpm
|
|
Feeding drum heating:
|
Single stage, double stage with or without steam heating arrangement (as required)
|
|
High Capacity:
|
3 to 4 tons per day. Capacity differs with material density and quantity of oil in the seed.
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
1625mm (5'4")
|
510mm (20")
|
1397mm (4'7")
|
|

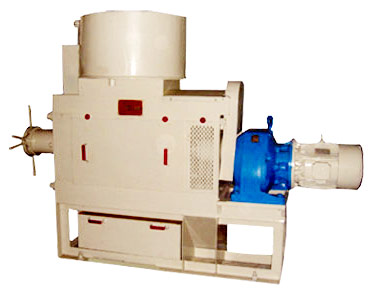

Goyum 30 MK-I
Capacity: 3 tons per day
Compact and easy-to-maintain, the Goyum 30 MK-I is made of high quality steel and has a steel casted chamber. The screw is hard faced. It is a belt-less expeller, thus fitted with a 2.5 hp geared electric motor. Thickness of the cake can be adjusted while machine is running. This machine is user- friendly, maintenance free and requires less space. Cage bars are hinged for easy maintenance.
The Goyum MK-I is an excellent choice for pilot and small scale applications and includes an integrated cooker that can heat or chill seeds as required using a variety of energy inputs. As with all of our machines, the MK-I can utilize a variety of voltages as specified by the customer and bars are adjustable to accommodate the entire spectrum of oilseeds.
Send Inquiry
|
|
|
|
Power Consumption:
|
3-phase 7.5 hp motor - 1440 rpm
single phase optional
|
|
High Capacity:
|
3 tons per day. Capacity differs with material density and quantity of oil in the seed.
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
2135mm (5'4")
|
410mm (1'4")
|
1500mm (4'11")
|
|

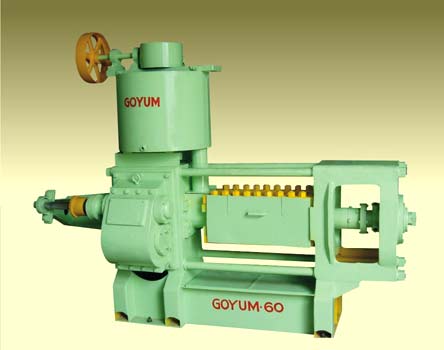

Goyum 60
Capacity: 5-6 ton per day
Designed for high productivity and heavy-duty performance, the technically advanced Goyum 60 provides effective and economical solutions to agro-industries for oil extraction. With a crushing capacity of 6 tons per day, the Goyum 60 is designed to outperform its competition in energy efficiency. The cast iron structure provides durability and corrosion resistance.
The main body and base are made out of high grade quality cast iron to provide long life and stability. It has a double reduction gear box with steel casted helical gears and a quill worm separate drive. The steel fabricated chambers are horizontally hinged. The screw is case hardened to ensure it withstands heavy loading, which results in a superior quality of oil and cake. The Goyum 60 is a time proven design that provides excellent valve.
|
|
|
| Send Inquiry
|
|
Power Consumption:
|
3-Phase 20hp Motor - 1440 rpm
|
|
Feeding Drum:
|
single stage cooker, 26" diameter
|
|
High Capacity:
|
5-6 tons per day (capacity differs with material density and quantity of oil in the seed.)
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
2900mm (9'6")
|
910mm (2'11.8")
|
2150mm (7'0.6")
|
|

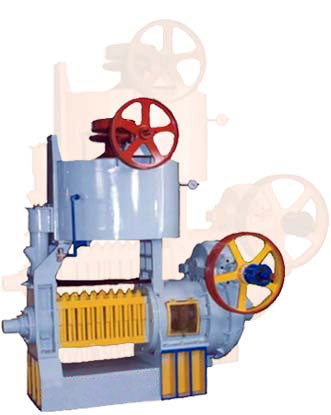

Goyum MK-III
Capacity: 8 to 10 tons per day
The Goyum MK-III is designed to provide solutions for industrial production of oil. This machine is made of premium quality materials to ensure effectiveness and ease-of-operations.
The base is made out of high grade quality steel. It has a double reduction gear box with steel fabricated gears and chamber. The sizes of the frames are as follows: 6 inches diameter x 33 inches long and 7 inches diameter x 44 inches long. The worm assembly and cone point are case hardened, which results in a superior quality of oil and cake. The main worm shaft can be withdrawn without disturbing the gear box. The crammer shaft allows for extra cramming of the seed or cake in the feed body. A two stage pre-conditioner is integrated into the machine design.
|
|
|
| Send Inquiry
|
|
Power Consumption:
|
3-phase 30hp motor 960 rpm
|
|
Feeding Drum:
|
2 high-steam jackets of 42" diameter for efficient cooking of seed. Pipe fitting contains all required accessories.
|
|
High Capacity:
|
8 to 10 tons per day (Capacity differs with material density and the quantity of oil in the seed)
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
2640mm (8'8")
|
1200mm (3'11.2")
|
2743mm
(9')
|
|

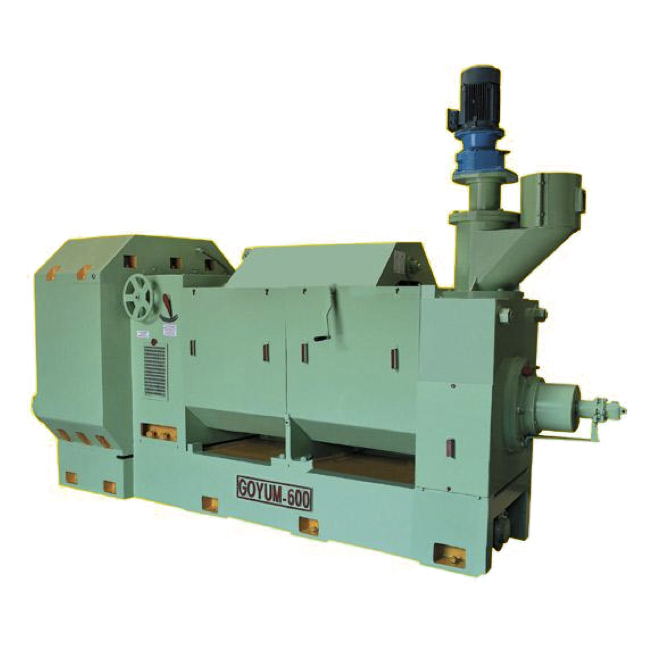

Goyum 600
Capacity: 30 tons per day
Having a crushing capacity of 30 tons per day, the Goyum 600 has a simple and symmetrical shape. Made of high quality materials on the line of modern technologies, Goyum 600 can be used for high crushing capacity oil millers and features a long case design for efficient oil removal.
The main body and base of the Goyum 600 are fabricated from mild steel. It has a triple reduction gear box with steel casted helical gears and pinion shafts of special steel. The gearbox is aligned with all the bodies on a single fabricated base. It has two vertically hinged cast steel chambers, each is 36Ó long. The worm assembly, discharge ring and compression ring are all hard faced. The cake thickness can be adjusted while the machine is running. The main worm shaft can be withdrawn without disturbing the gear box. The shaft water is cooled. The crammer shaft allows for extra cramming of the seed or cake in the feed body and is completely supported on bearings.
Send Inquiry
|
|
|
|
Power Consumption:
|
3-phase 100 hp motor (expeller) - 1440 rpm
3-phase 20 hp motor (kettle) - 1440 rpm
|
|
Feeding Drum:
|
5 high-steam jackets of 66" diameter for efficient cooking of seed. Pipe fitting contains safety valve, steam spray pipes, pressure gauge, steam valves and steam traps. Exhaust fan is also provided to extract excess steam or moisture from cooking chambers. Kettle is supported separately on a fabricated structure.
|
|
High Capacity:
|
50 to 60 tons per 24 hours in pre-pressing and 30 tons in single and final crushing (capacity differs with material density and quantity of oil)
|
|

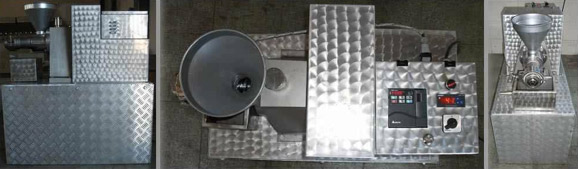

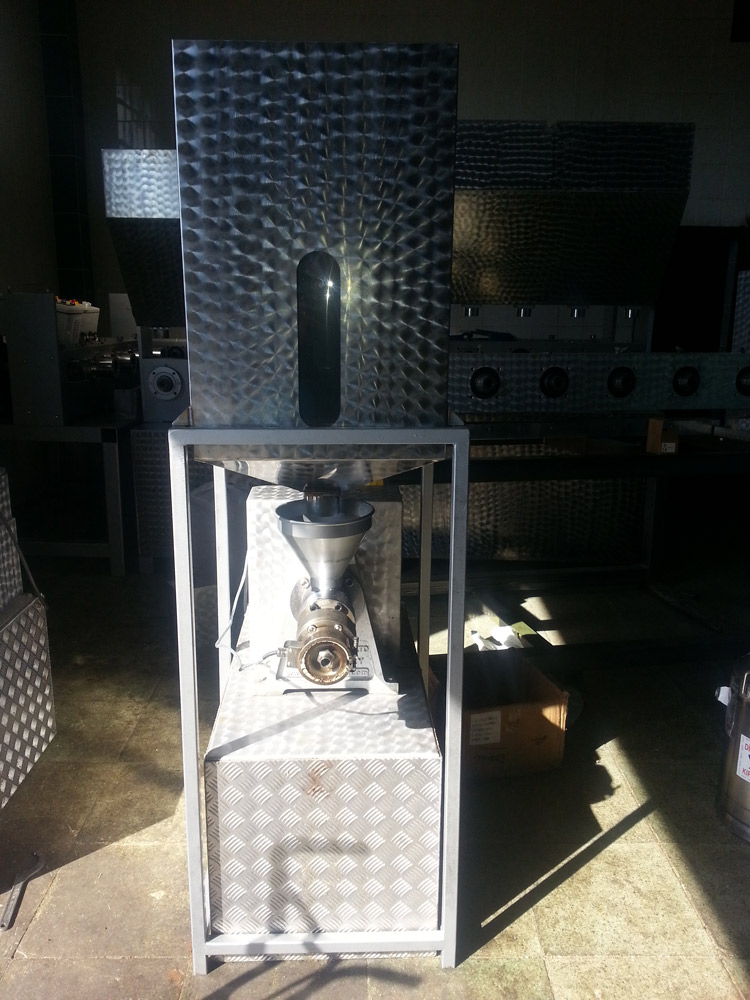

NSP Tokul Solid Shaft Screw Press - Single Head
Capacity: 300lbs/day (depending on nozzle used, seed density and moisture)
The materials used are: 1.4121 SS, 1.4125 SS, 1.2379 SS and 51420 CHROME NICKEL
We source our materials from a German-Turkish joint venture which is known worldwide for top quality products. See birlesikmetal.com.tr.
We perform a heating and hardening process that subjects components to 1030-1050 C temperatures (depending on material) and reheated after cooling to 150 C.
Final processing includes coating with nickel phosphate to increase durability.
Our systems are expandable to ensure customers achieve projected scale up results.
Nebraska Screw Press is the authorized North American dealer for this equipment from www.tokultarim.com and warrants drive systems for 20 years. High quality replacement parts are in stock for fast delivery for your Tokul presses.
Contact us for references, pricing and further information regarding your next project.
|
|
(Shown with optional extra hopper)
|
| Send Inquiry
|
|
Weight:
|
150 KG (330 lbs)
|
|
Motor:
|
2.2kW and available in a variety of voltages (please specify)
|
|
Drive:
|
Variable speed motor control is included with digital readout
|
|
Heater:
|
Heating regulator is standard with a digital temperature controller
|
|
Typical oil removal:
|
85-90% (depending on nozzle, moisture and seed condition)
|
|
Capacity:
|
300lbs/day (depending on nozzle used, seed density and moisture)
|
|
Price:
|
$6500 (including delivery to your local airport)
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
0.9m (2'11.43")
|
0.5m (1'7.68")
|
1.25m (4'1.21")
|
| Additional Images:
|
|
|
NSP Tokul Solid Shaft Screw Press - 3 Head
Capacity: 0.75-1 Ton/day
The materials used are: 1.4121 SS, 1.4125 SS, 1.2379 SS and 51420 CHROME NICKEL
We source our materials from a German-Turkish joint venture which is known worldwide for top quality products. See birlesikmetal.com.tr.
We perform a heating and hardening process that subjects components to 1030-1050 C temperatures (depending on material) and reheated after cooling to 150 C.
Final processing includes coating with nickel phosphate to increase durability.
The standard 3 head press includes an integrated feed bunk, digital speed and heat control and stand to enable ease of operation, optimization and repeatability. Our systems are expandable to ensure customers achieve projected scale up results.
Nebraska Screw Press is the authorized North American dealer for this equipment from www.tokultarim.com and warrants drive systems for 20 years. High quality replacement parts are in stock for fast delivery for your Tokul presses.
Contact us for references, pricing and further information regarding your next project.
|
|
|
| Send Inquiry
|
|
Weight:
|
700 KG (1400 lbs)
|
|
Motor:
|
2.2kW standard with 5.5kW upgrade option, independent motor option available in a variety of voltages (please specify)
|
|
Drive:
|
Variable speed motor control is included with digital readout
|
|
Heater:
|
Heating regulator is standard with a digital temperature controller
|
|
Typical oil removal:
|
85-90% (depending on nozzle, moisture and seed condition)
|
|
Capacity:
|
0.75-1 Ton/day (depending on nozzle used, seed density and moisture)
|
|
Price:
|
$6000 - $8000 per head (depending on options selected)
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
1m (3'3.37")
|
1m (3'3.37")
|
2.3m (7'6.55")
|
| Additional Images:
|
|
|
|

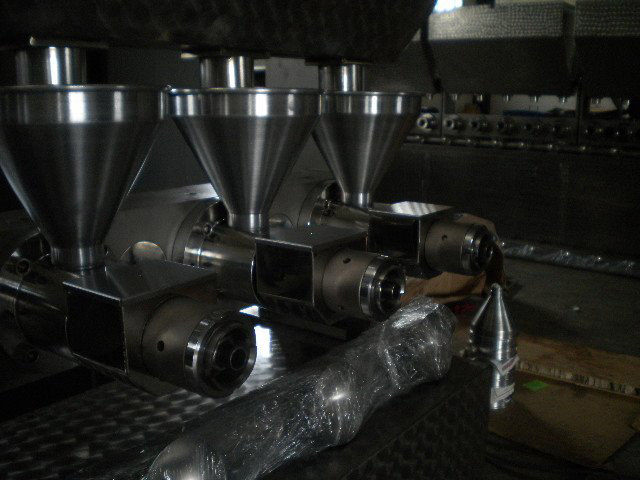

Optional filter closet
|

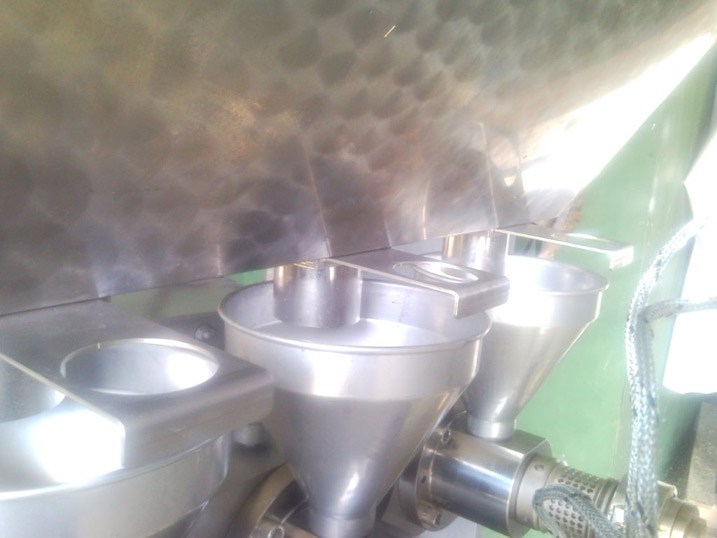

Multi head machines include integrated feed regulators for each screw
|
|
|
NSP Tokul Solid Shaft Screw Press - 5 Head
Capacity: 0.75-1 Ton/day
1.4121 SS, 1.4125 SS, 1.2379 SS and 51420 CHROME NICKEL
We source our materials from a German-Turkish joint venture which is known worldwide for top quality products. See birlesikmetal.com.tr.
We perform a heating and hardening process that subjects components to 1030-1050 C temperatures (depending on material) and reheated after cooling to 150 C.
Final processing includes coating with nickel phosphate to increase durability.
The standard 5 head press includes an integrated feed bunk, digital speed and heat control and stand to enable ease of operation, optimization and repeatability. Our systems are expandable to ensure customers achieve projected scale up results.
Nebraska Screw Press is the authorized North American dealer for this equipment from www.tokultarim.com and warrants drive systems for 20 years. Top quality replacement parts for your Tokul press are stocked in our Nebraska facility for fast delivery.
Contact us for references, pricing and further information regarding your next project.
|
|
|
| Send Inquiry
|
|
Weight:
|
750 KG (1400 lbs)
|
|
Motor:
|
5.5kW standard with 2.2kW and 7.5kW options, independent motor option available in a variety of voltages (please specify)
|
|
Drive:
|
Variable speed motor control is included with digital readout
|
|
Heater:
|
Heating regulator is standard with a digital temperature controller
|
|
Typical oil removal:
|
85-90% (depending on nozzle, moisture and seed condition)
|
|
Capacity:
|
0.75-1 Ton/day (depending on nozzle used, seed density and moisture)
|
|
Price:
|
$6000 - $8000 per head (depending on options selected)
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
1.5m (4'11.05")
|
1m (3'3.37")
|
2.3m (7'6.55")
|
| Additional Images:
|
|
|
|

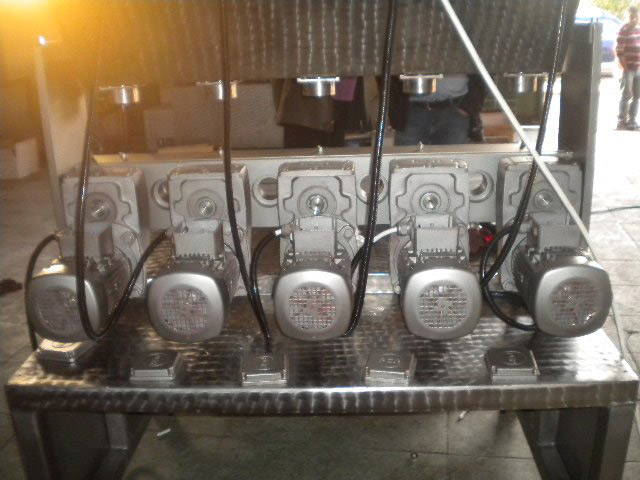

Individual motor - This option provides full motor power to each head for very hard seed
|
Multi head machines include integrated feed regulators for each screw
|
|
|

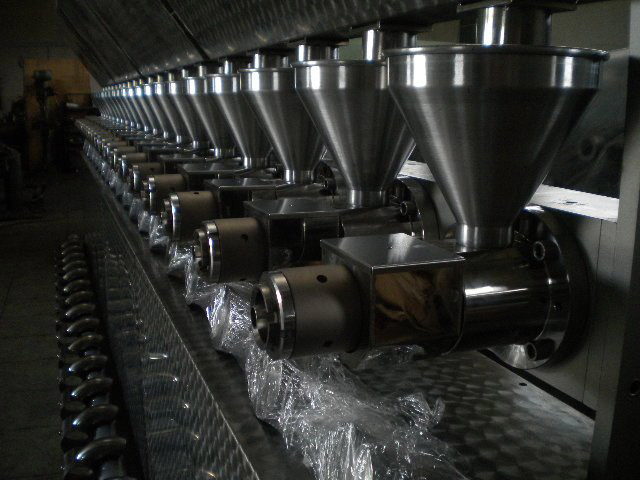

NSP Tokul Solid Shaft Screw Press - 20 Head
Capacity: Up to 3 Ton/day
1.4121 SS, 1.4125 SS, 1.2379 SS and 51420 CHROME NICKEL
We source our materials from a German-Turkish joint venture which is known worldwide for top quality products. See birlesikmetal.com.tr.
We perform a heating and hardening process that subjects components to 1030-1050 C temperatures (depending on material) and reheated after cooling to 150 C.
Final processing includes coating with nickel phosphate to increase durability.
The standard 20 head press includes an integrated feed bunk, digital speed and heat control and stand to enable ease of operation, optimization and repeatability. Our systems are expandable to ensure customers achieve projected scale up results. Options including feed, oil and pellet augers can be included as required.
Nebraska Screw Press is the authorized North American dealer for this equipment from www.tokultarim.com and provides a 10 year warranty on drive systems. Top quality replacement parts for your Tokul press are stocked in our Nebraska facility for fast delivery.
Contact us for references, pricing and further information regarding your next project.
|
|
|
| Send Inquiry
|
|
Weight:
|
3300 KG (3mton)
|
|
Motor:
|
5.5kW standard with 2.2kW and 7.5kW options, independent motor option available in a variety of voltages (please specify)
|
|
Drive:
|
Variable speed motor control is included with digital readout
|
|
Heater:
|
Heating regulator is standard with a digital temperature controller
|
|
Typical oil removal:
|
85-90% (depending on nozzle, moisture and seed condition)
|
|
Capacity:
|
up to 3 Ton/day (depending on nozzle used, seed density and moisture)
|
|
Price:
|
$6000 - $8000 per head (depending on options selected)
|
|
Machine Dimensions
|
|
Length
|
Width
|
Height
|
|
6m (19'8.22")
|
1m (3'3.37")
|
2.3m (7'6.55")
|
| Additional Images:
|
|
|
|
Optional filter closet
|
Multi head machines include integrated feed regulators for each screw
|
|
|
|
|
|
|
 |
|
