Home / Products / Seed Preparation

Seed Preparation and Grinding

We have a range of seed preparation machines that work with precision in their desired application. This includes seed cleaners, dehullers, and more. These machines are available in various capacities and specifications and deliver superior performance, are easy to use, and offer a long service life.

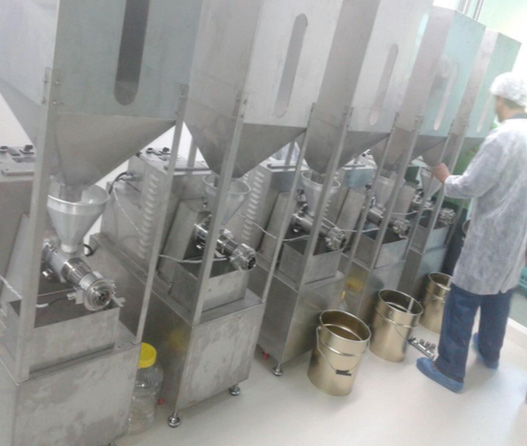

Seed Tanks for Single Head Machines

The standard single head press includes a feed funnel that can hold materials for immediate processing, but the optional seed tank can provide overhead storage of materials so you can take advantage of the machines ability to operate without supervision for at least 12 hours.

The integrated overhead seed bunk is designed specifically for our single head machines and is easy to set up and remove. The unit breaks down very efficiently for shipment and will add only a nominal impact to shipping costs on a single head machine. Loading augers are also available to fill the seed tank.

See through window makes it easy to check seed level and a sluice type valve at the bottom of the cone is built into the unit so that feed may be shut off to the feed funnel at any time.

Please contact us if you are interested in adding this option to your single head pressing unit.


Download the Seed Tank PDF (169 KB)

Send Inquiry


Weight: 25KG
Capacity: Estimated 100KG, depending on material density
Materials used: SS Construction
Machine Dimensions
Length Width Height
0.8m 0.8m 2.30m (mounted on machine)





Cleaning and Flour Grinding:




Seed Cleaners

  • Steel fabricated structure with wooden trays
  • Double deck with dust blower
  • 20 tons per day
  • Little maintenance
  • Highly efficient
  • Dust collector is provided for a pollution free machine
  • Trays may be changed to accommodate a variety of seed sizes
  • Numerous capacities available


Send Inquiry

Power Consumption: 3-phase 7.5 hp motor - 1440 rpm
High Capacity: 20 tons per day (depending upon quality and density of the seed)
Machine Dimensions
Length Width Height
2286mm 1219mm 1437mm

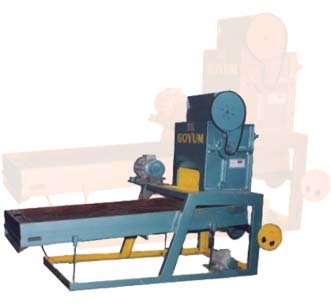

Dehuller

  • All steel fabricated
  • Synchronized feeding
  • Vibratory separator fitted underneath
  • Little maintenance
  • Suitable for sunflower seeds and soybeans
  • 20 tons per day
  • Adjustments may be made for different seed sizes
  • All sizes available, contact us for specific quote

Send Inquiry
Power Consumption: 10hp Motor for dehuller
High Capacity: 2 to 250 tons per day (depending upon quality and density of the seed)
Less space requirement [overall machine dimensions] (approx.)
Machine Dimensions
Length Width Height
2895mm 1575mm 2134mm






Cake Breaker

Available in steel or chrome



Send Inquiry
Price per unit: $3800 plus shipping





Golden Grain Grinders:

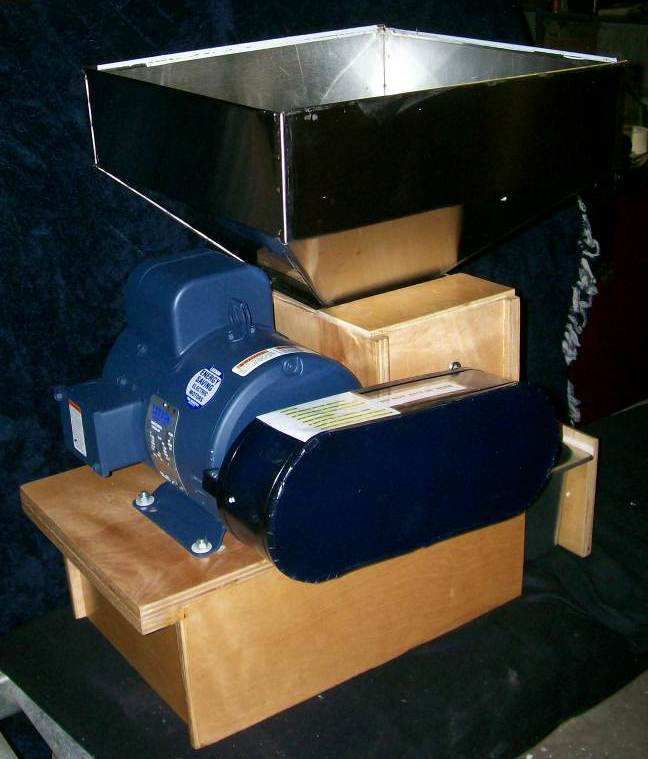

Household Mill

Capacity: 50-60 lbs of flour/hour

Turns course cereal and wheat into flour. The hopper holds 7 cups of grain, while a stainless steel drawer holds 6.5 qt. of flour. It also features self-cleaning stones, which provide many years of service and are easily changed if needed.

Send Inquiry
Motor: 3/4 hp
Capacity: 50-60 lbs of flour/hour
Price per unit: $619.99
Shipping: $125.00
Other options: Optional Hand Crank - $35
Machine Dimensions
Length Width Height
18" 13" 15"



Commercial Mill

Capacity: 150 to 250 lbs/hour

Turns course cereal and wheat into flour. The inside is lined with stainless steel, and the hopper holds 50 pounds of grain. It also features self-cleaning stones, which provide many years of service and are easily changed if needed.


Send Inquiry
Motor: 3 hp motor with 220v single phase or three phase options available
Capacity: 150 to 250 lbs/hour
Price: With drawer: $3295.00
Without drawer: $3195.00
Shipping: $175.00 - Can be drop shipped
